Artifactory Webhook Receiver

The Artifactory Webhook Receiver responds to pushed events originating from Artifactory repositories by refreshing all Warehouse resources subscribed to those repositories.

warning

This webhook receiver does not respond to events where domain is artifact and event_type is deployed.

info

"Refreshing" a Warehouse resource means enqueuing it for immediate reconciliation by the Kargo controller, which will execute the discovery of new artifacts from all repositories to which that Warehouse subscribes.

Self-Hosted Artifactory

info

If you are not using a self-hosted Artifactory instance, skip to the configuring the receiver section.

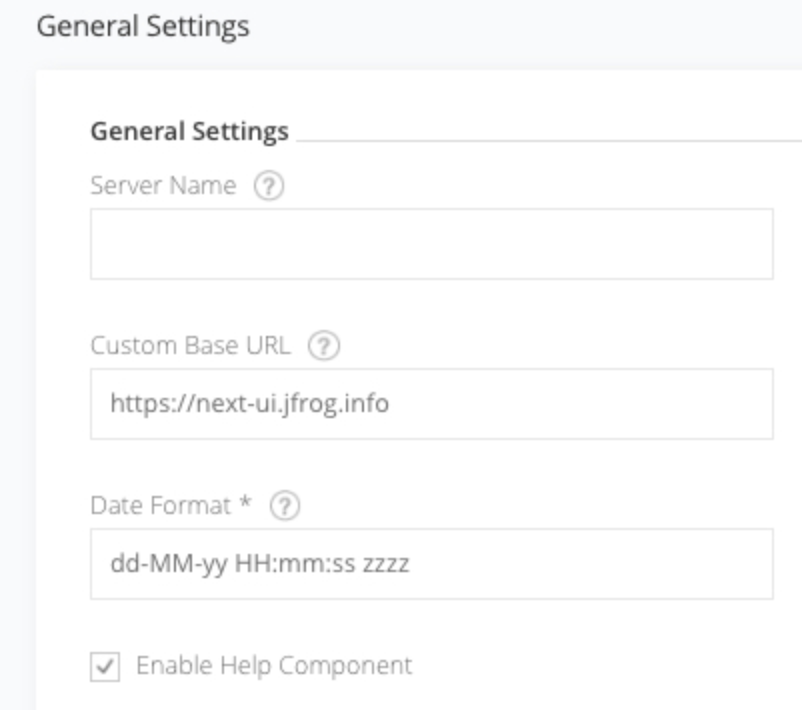

In order for a webhook initiated Warehouse refresh to successfully occur, it is required that you set a Custom Base URL for your instance. When this setting hasn't been configured, critical information will be missing from the webhook payloads.

1. Navigate to https://<base-url>/ui/admin/configuration/general, where <base-url> has been replaced with the base URL of your self-hosted Artifactory instance.

2. Set the Custom Base URL field to the base URL of your self-hosted Artifactory instance.



3. At the bottom of the form, click Save.

info

For additional information on configuring your Custom Base URL refer directly to the Artifactory Docs.

Configuring the Receiver

An Artifactory webhook receiver must reference a Kubernetes Secret resource with a secret-token key in its data map. This shared secret will be used by Artifactory to sign requests and by the receiver to verify those signatures.

note

The following commands are suggested for generating and base64-encoding a complex secret:

secret_token=$(openssl rand -base64 48 | tr -d '=+/' | head -c 32)
echo "Secret token: $secret_token"
echo "Encoded secret token: $(echo -n $secret_token | base64)"

apiVersion: v1
kind: Secret
metadata:
  name: artifactory-wh-secret
  namespace: kargo-demo
  labels:
    kargo.akuity.io/cred-type: generic
data:
  secret-token: <base64-encoded secret token>
---
apiVersion: kargo.akuity.io/v1alpha1
kind: ProjectConfig
metadata:
  name: kargo-demo
  namespace: kargo-demo
spec:
  webhookReceivers:
  - name: artifactory-wh-receiver
    artifactory:
      secretRef:
        name: artifactory-wh-secret

Virtual Repositories

When Warehouses intended to be refreshed by an Artifactory webhook receiver subscribe to Artifactory virtual repositories there will be discrepancies between the URLs the receiver will infer for the local repositories from which push events have originated and the URLs actually used by those Warehouses' subscriptions.

To compensate for this, a value can be provided for the Artifactory webhook receiver configuration's virtualRepoName field. When specified, its value supersedes the local repository name found in the webhook's payload, which allows the receiver to infer the correct virtual repository URL for which all subscribed Warehouses should be refreshed.

In practice, when using virtual repositories, a separate Artifactory webhook receiver should be configured for each, but one such receiver can handle events originating from any number of local repositories that are aggregated by that virtual repository. For example, if a virtual repository proj-virtual aggregates container images from all of the proj Artifactory project's local image repositories, with a single webhook configured to post to the following receiver, an image pushed to example.frog.io/proj-<local-repo-name>/<path>/image, will correctly cause that receiver to refresh all Warehouses subscribed to example.frog.io/proj-virtual/<path>/image.

apiVersion: v1
kind: Secret
metadata:
  name: artifactory-wh-secret
  namespace: kargo-demo
  labels:
    kargo.akuity.io/cred-type: generic
data:
  secret-token: <base64-encoded secret token>
---
apiVersion: kargo.akuity.io/v1alpha1
kind: ProjectConfig
metadata:
  name: kargo-demo
  namespace: kargo-demo
spec:
  webhookReceivers:
  - name: proj-virtual-wh-receiver
    artifactory:
      secretRef:
        name: artifactory-wh-secret
      virtualRepoName: proj-virtual

Retrieving the Receiver's URL

Kargo will generate a hard-to-guess URL from the receiver's configuration. This URL can be obtained using a command such as the following:

kubectl get projectconfigs kargo-demo \
  -n kargo-demo \
  -o=jsonpath='{.status.webhookReceivers}'

Registering with Artifactory

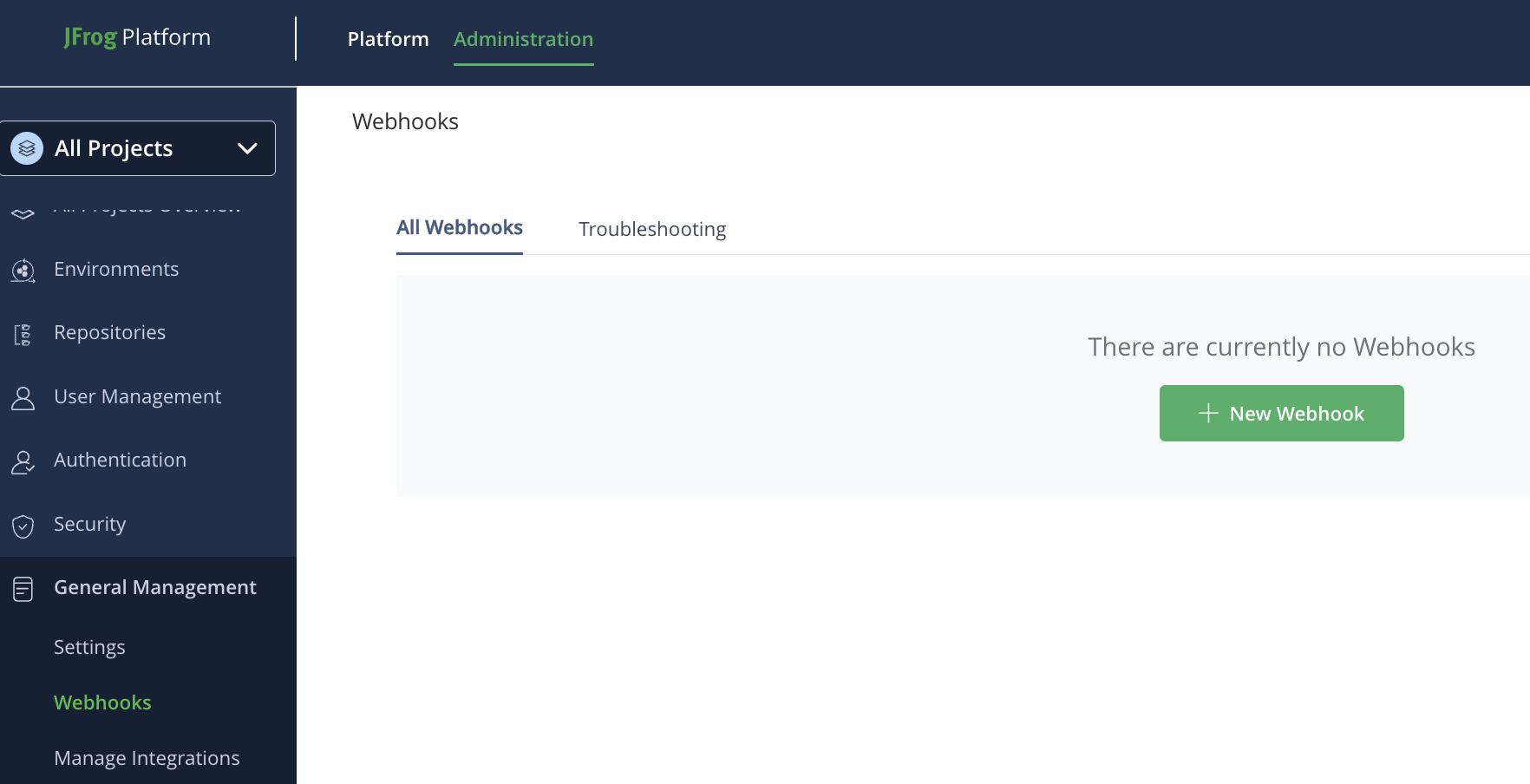

1. Navigate to https://<jfrog-instance>.jfrog.io/ui/admin/configuration/webhooks, where <jfrog-instance> has been replaced with an Artifactory instance for which you are an administrator.

2. Click New Webhook.

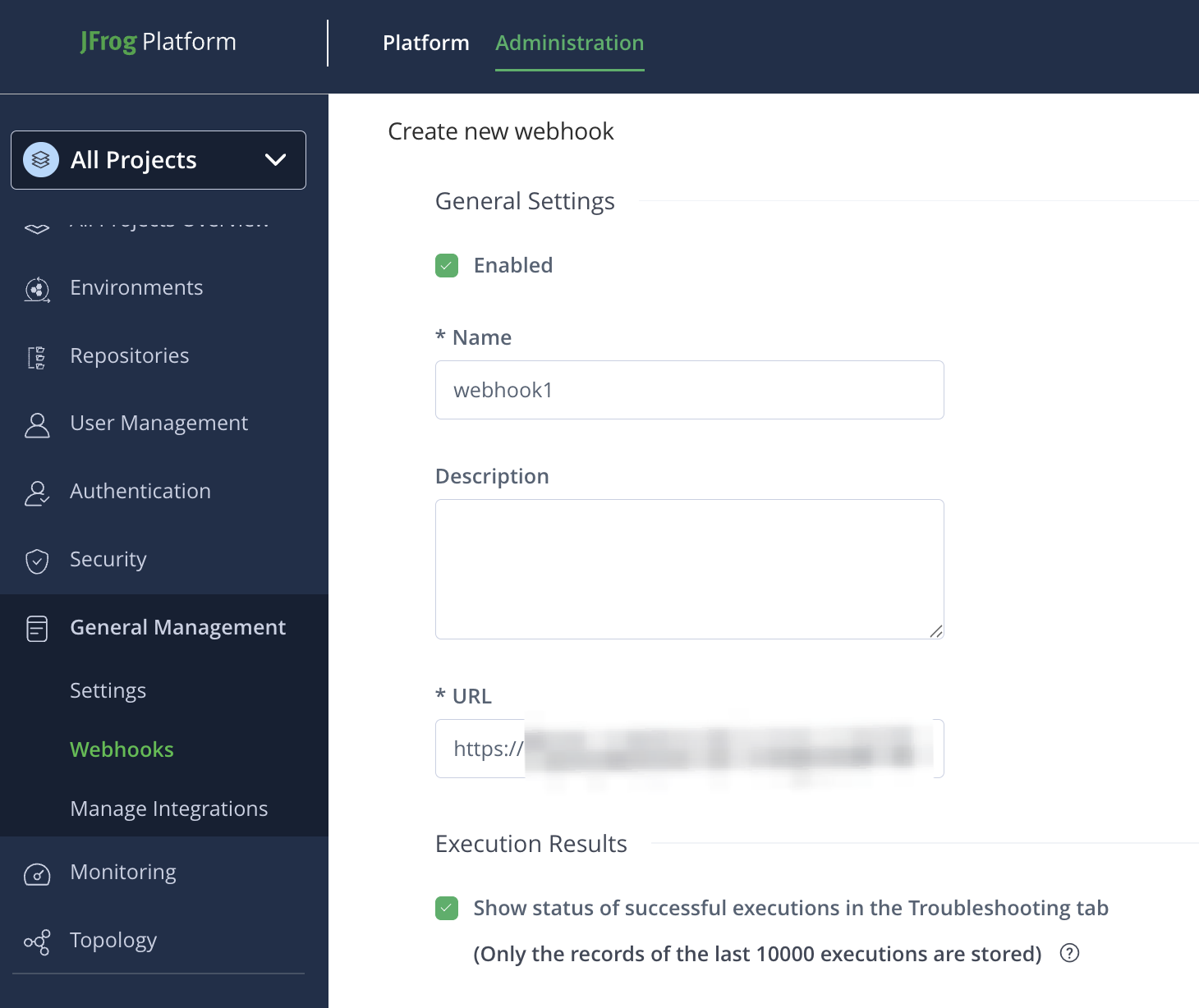

3. Complete the Create new webhook form:



   1. Enter a descriptive name in the Name field.

   2. Complete the URL field using the URL for the webhook receiver.

   3. Under Execution Results check Show status of successful executions in the Troubleshooting tab.

      info

      Although Artifactory supports sending test events to the URL, such events are not displayed in the troubleshooting tab; only actual events are.

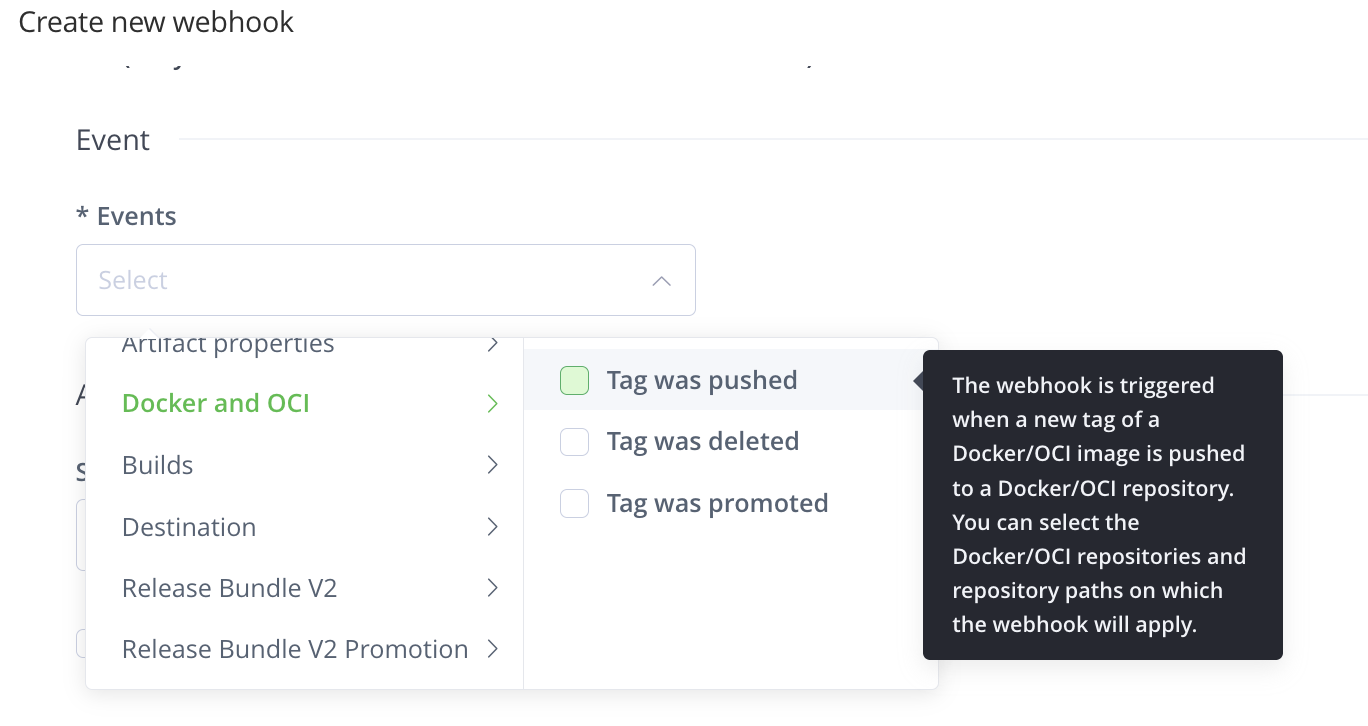

   4. In the Events drop-down, select Docker and OCI ⃗ Tag was pushed.



      info

      Artifactory supports many different types of registries and repositories. This webhook responds only to events originating from repositories in OCI registries. No other type of repository, including legacy (HTTP/S) Helm chart repositories, is supported.

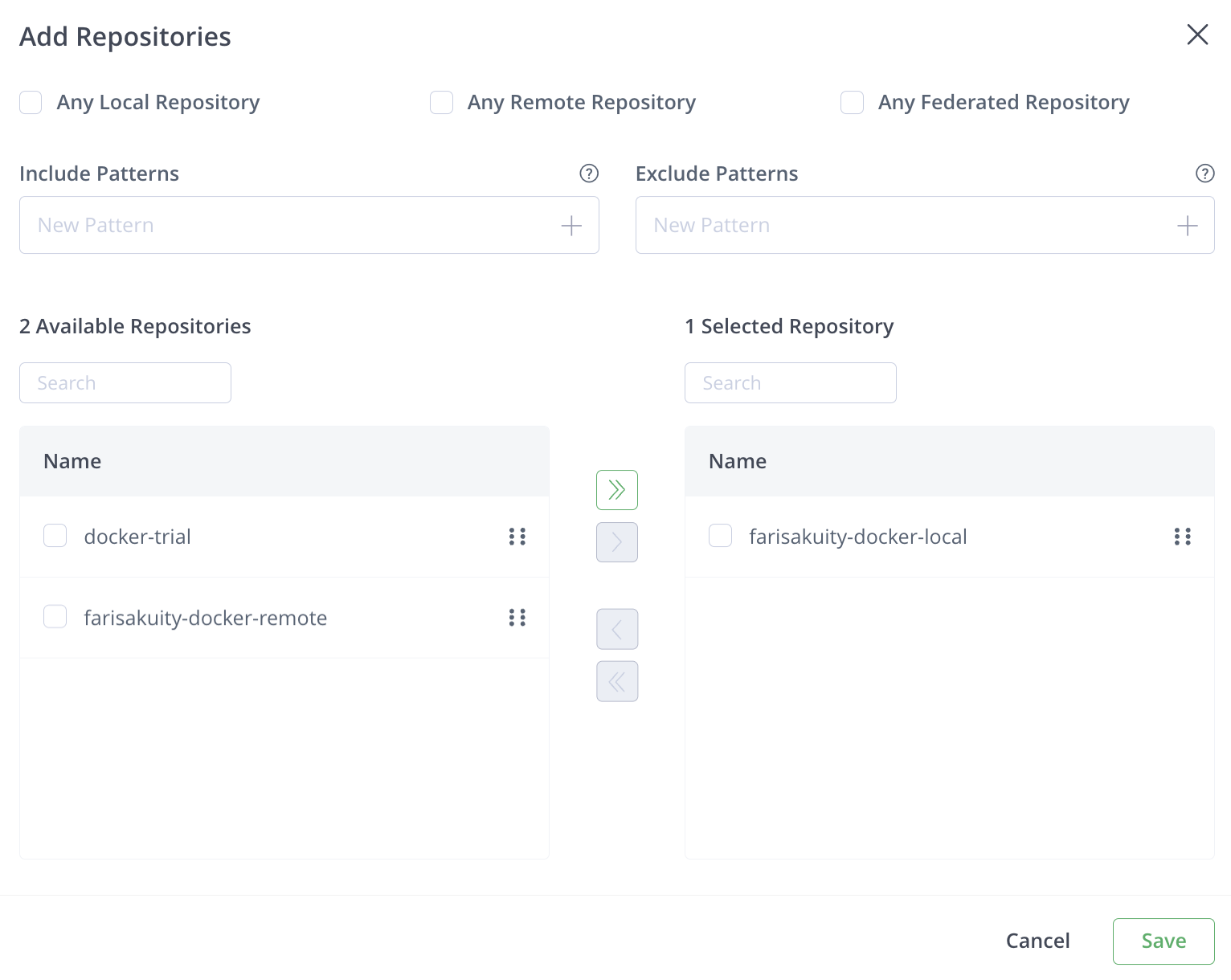

   5. Complete the dialog that appears:



      1. Select repositories from which you would like to receive events from those listed on the left.

      2. Click > to move your selections to the right.

         Upon doing so, the Save button will be enabled.



      3. Click Save.

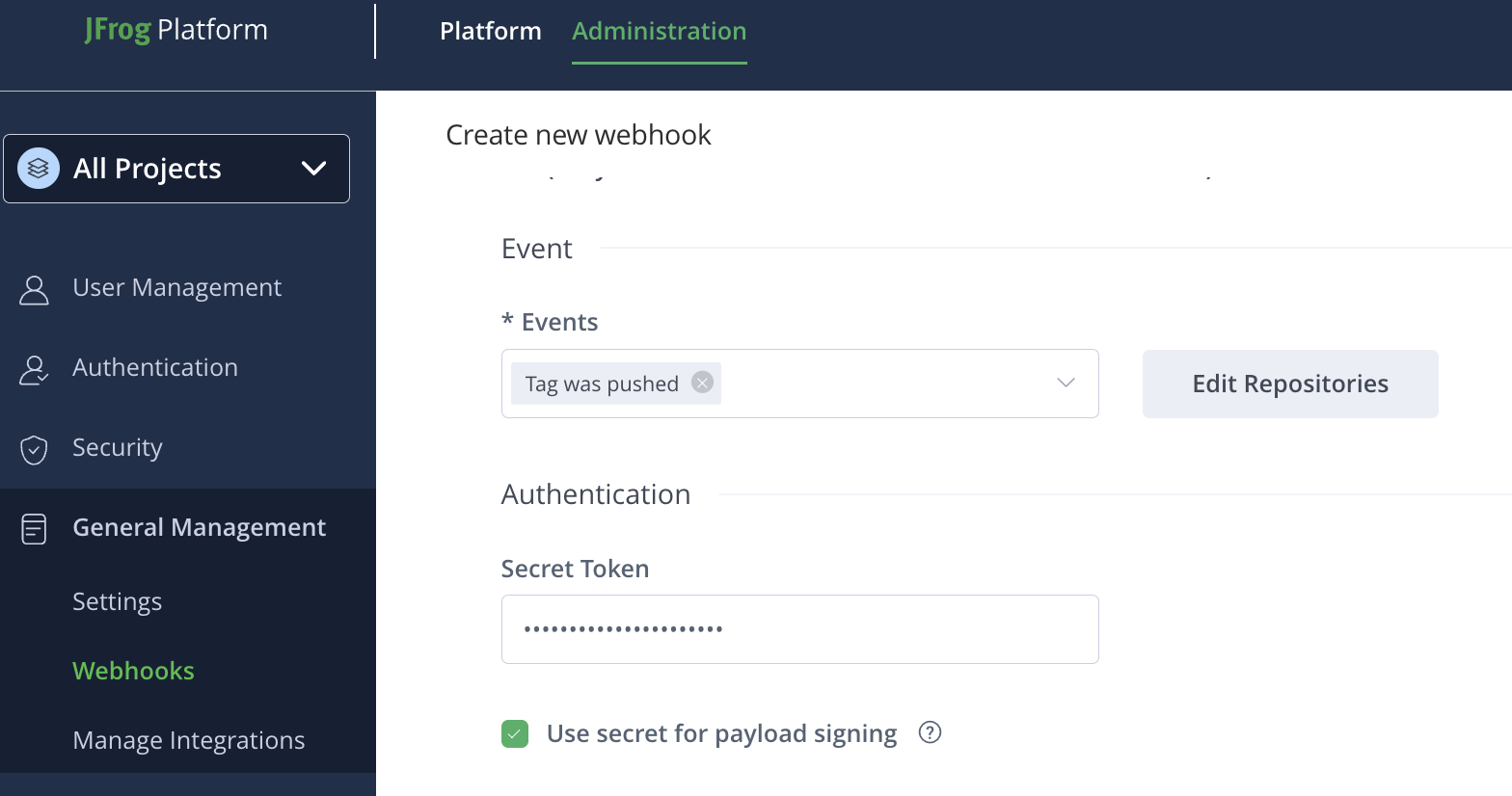

   6. Under Authentication, complete the Secret token field using the (unencoded) value of the secret-token key in the Secret resource referenced by the webhook receiver's configuration.



   7. Select Use secret for payload signing.

      caution

      The webhook receiver won't accept unsigned requests.

   8. Click Save.

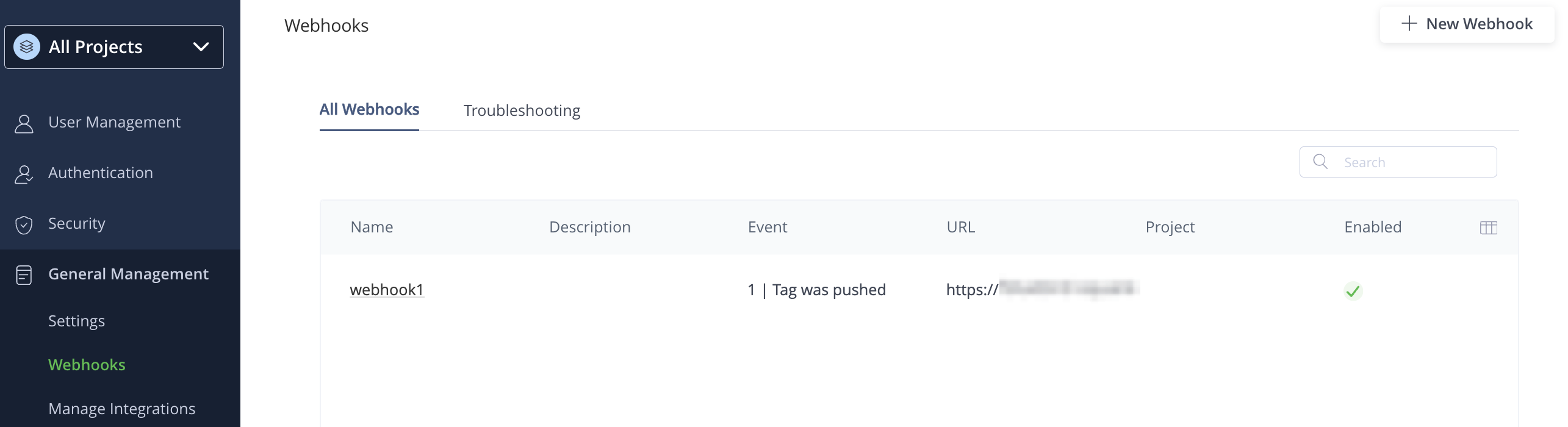

      You will be redirected to the Webhooks page where the newly created webhook will appear.
